In the example below, the scheduler is used to control the lighting in a warehouse.
The power-on command is given by setting the CMDLUCI Item value to 1 while the power-off is given by setting the value to 0.
Night lights must be activated in the following ways:


    1. From October to March must be switched on every day from 17:30 to 7:45.
    2. From April to September must be switched on every day from 19:00 to 6:30.



Time slots from October to March

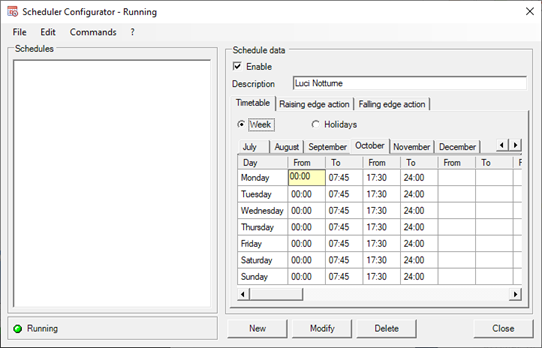

The following picture shows how to configure the time slots of the weekly days of the month of October (which will coincide with the configuration of the months of November, December, January, February and March) to get the night lights on from 17:30 to 7: 45 every day of the week.




Note: for the months from October to March it is not necessary to specify times for holidays.


Time slots form April to September

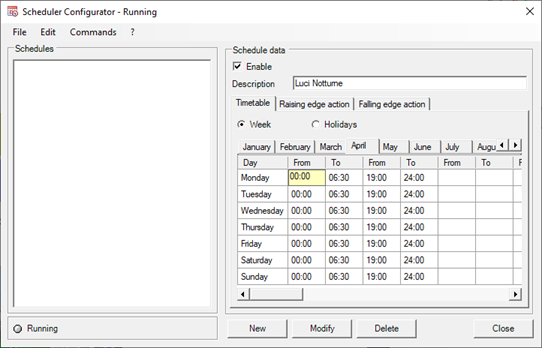

The following picture shows how to set the weekly day of the month of April (which will coincide with the configuration of the months of May, June, July, August and September) to achieve ignition of night lights from 19:00 to 6:30 all the days of the week.


Note: for the months from April to September it is not necessary to specify times for holidays.



Configuring schedule actions



After defining the time slots, the action performed at the entrance and exit from the time slots must be defined. The following is how to configure the Schedule Action tab for:

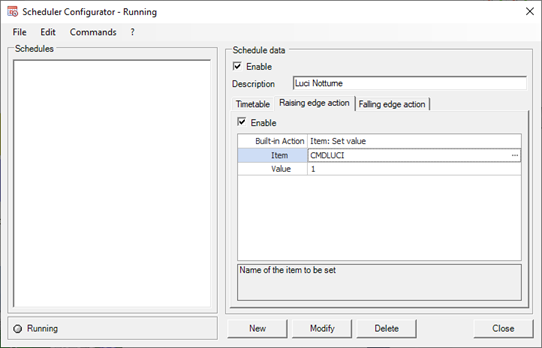

    1. activate the CMDLUCI item at the entrance in the time slot (setting the value to 1)








- deactivate the CMDLUCI item when leaving the time zone (setting the value to 0)
